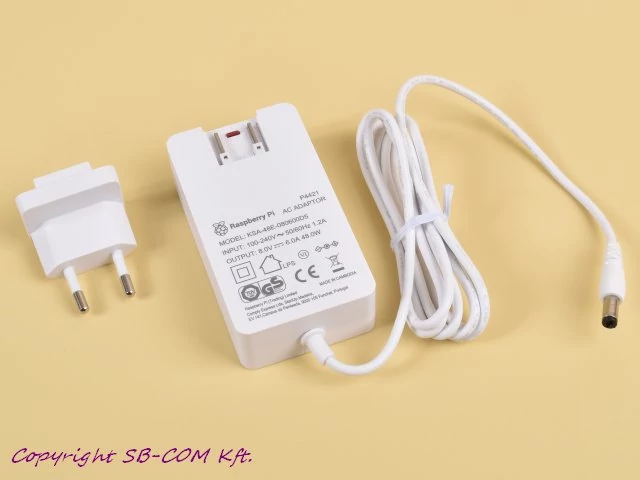

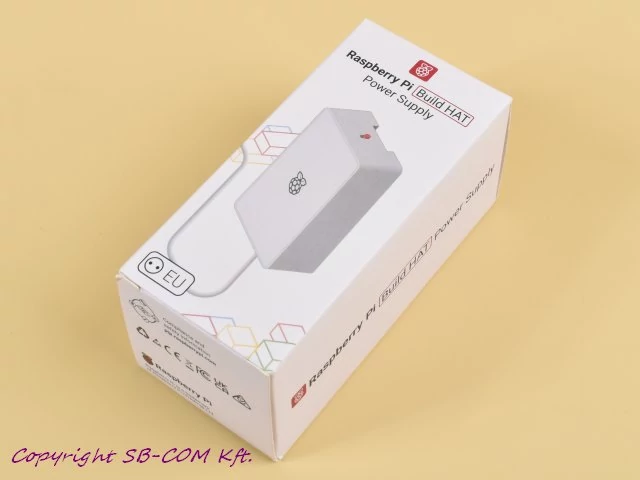

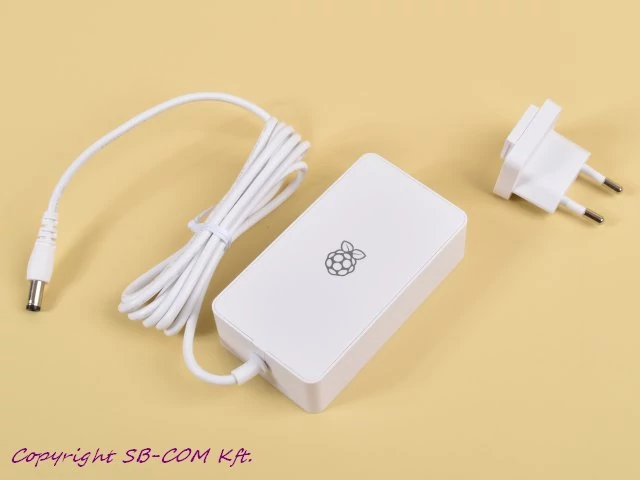

Raspberry Pi Build HAT tápegység

Raspberry Pi Build HAT Power Supply – Raspberry Pi (Trading) Ltd3

Raspberry Pi Build Hat projectjeid tápellátását ezzel 48W-os tápegységgel tudod biztosítani.

Kompatibilis a LEGO® Education csomagban található LEGO Technic motorokkal és érzékelőkkel.

Gyártói adatlap

Specification

Output

• Output voltage: +8.0V DC
• Minimum load current: 0.01A
• Nominal load current: 6.0A
• Maximum power: 48.0W
• Load regulation: ±5%
• Line regulation: ±5%
• Ripple & noise: 200mVp-p
• Rise time: 100ms maximum to regulation limits for DC outputs
• Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
• Protection: Short circuit protection
• Overcurrent protection
• Overvoltage protection
• Efficiency: 87.77% minimum (output current from 100%, 75%, 50%, 25%)
• Output cable: 1.5m 16AWG
• Output connector: Barrel connector
• 5.5mm × 2.1mm × 11mm
• Centre positive

• Voltage range: 100-240Vac (rated)
• 96-264Vac (operating)
• Frequency: 50/60Hz ±3Hz
• Current: 1.2A maximum
• Power consumption (no load): 0.1W maximum
• Inrush current: No damage shall occur and the input fuse shall not blow
